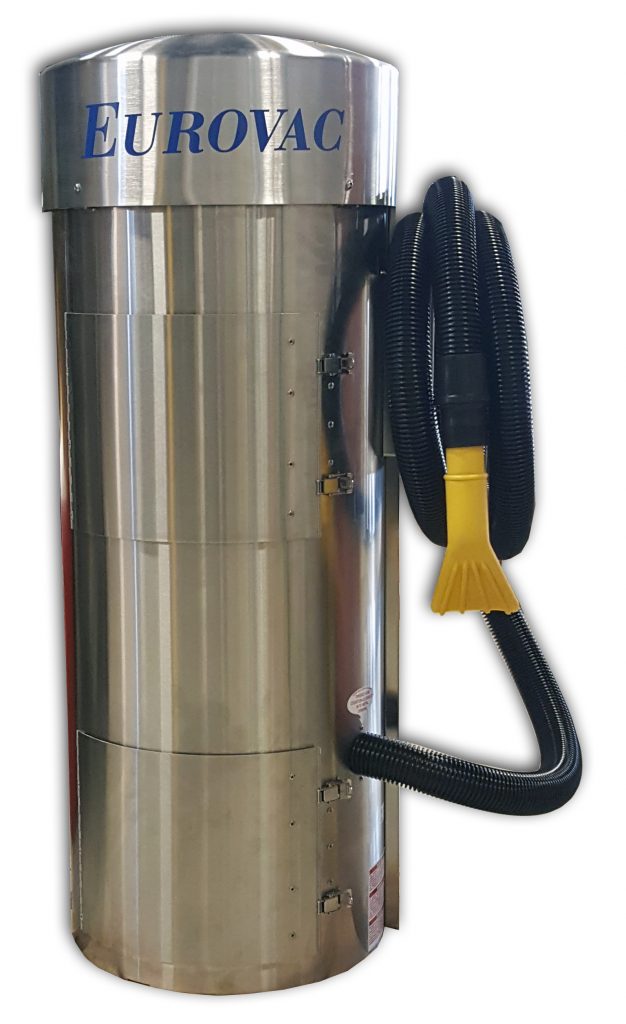

Stainless Steel Stand Alone Vacuum (2 Motor)

Part#POR-S32-BL1CS2PC

Includes: ● 2″ x 17′ Blue Hose with Yellow Cleaning Claw & Hose Hanger Equipment Specs: ● Controls: On/Off with Automatic Shut Down After Set Period of Time (Auto shut down is adjustable from 1 to 30 mintues) Optional Upgrade: Programmable Coin Acceptor ● Inlet: 2″ Hose Connection ● Blowers: QTY 2 – 1.6HP Brush Motors (rated 4000 hours of intermittent duty) ● Filtration: Cyclonic filter separator with after bag filters ● Lid: Stainless steel dome lid ● Electrical: Single Phase Voltage: 115/1/60 ● Requires: 20 Amp Service ● System Performance: 152 CFM at 22″ WG 136 CFM at 28″ WG 119 CFM at 35″ WG Vacuum – 92.2″WC ● Options: Coin/Bill/Credit Card Acceptor & Wall Mount/Post Bracket

Stainless Steel Stand Alone Vacuum (3 Motor)

Part#POR-S48-BL1SX2PC

Includes: ● Qty 2 – 2″ x 17′ Blue Hose with Yellow Cleaning Claw & Hose Hanger Equipment Specs: ● Controls: On/Off with Automatic Shut Down After Set Period of Time (Auto shut down is adjustable from 1 to 30 minutes) ● Inlet: Qty 2 – 2″ Hose Connections ● Blowers: QTY 3 – 1.6HP Brush Motors (rated 4000 hours of intermittent duty) ● Filtration: Cyclonic filter separator with after bag filters ● Lid: Stainless steel dome lid ● Electrical: Single Phase Voltage: 115/1/60 ● Requires: 30 Amp Service ● System Performance: 210 CFM Options: Coin/Bill/Credit Card Acceptor & Wall Mount/Post Bracket

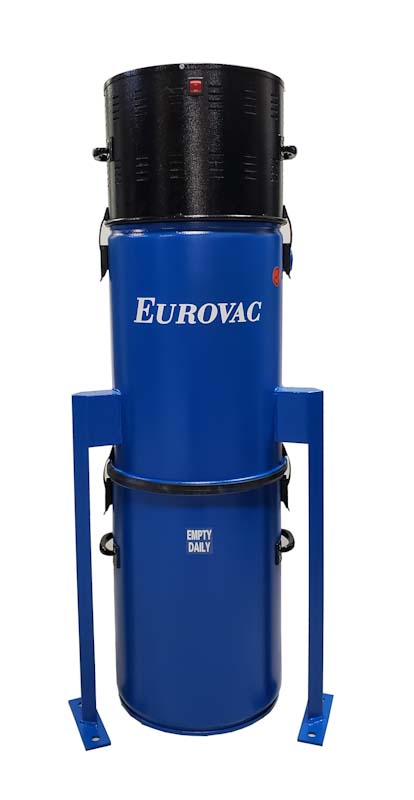

Eurovac II 2.5HP Central Vacuum System

Part #: SYS-050-16100000

• Powerful 2.5HP Pump produces, 125” of water column and 115” of free flow CFM. • Superior Filtration … Cyclonic filtration removes 99% of dust before the secondary filter. This results in the unit operating much more efficiently than units which do not have cyclonic filtration. • Quiet … Muffler and insulated motor housing reduce noise level below 65 dBA’s • Inlet … The system is provided with an inlet already pre-mounted onto the unit. Alternatively the system can have piping and multiple drops located throughout a shop. • On/Off feature … Micro switch turns system on and off when hoses is plugged into the inlet (when used as a central system). • Easy to Install … complete installation instruction. Optional Features: Automatic pulse cleaning system, leg mounted stand option, hepa filtration, brushless motor.

Eurovac II – 2.5HP (1 Man Detail Vacuum System)

2.5HP Part #: SYS-050-106BS00

Powerful 2.5HP Pump produces, 115” of water column and 125” of free flow CFM. Superior filtration; cyclonic filtration removes 99% of dust before the secondary bag filters. This results in the unit operating much more efficiently than units which do not have cyclonic filtration. The remaining 1% of dust is removed by a secondary cartridge filter which cleaned by compressed air pulse jet cleaning action. Quiet Operation: Muffler and insulated motor housing reduce noise level below 65 dBA’s The system is provided with an inlet already pre-mounted onto the unit. Alternatively the system can have piping and multiple drops located throughout a detail shop. On/Off feature; Micro switches turns system on and off with a toggle switch next to the inlet. Easy to Install; All systems complete installation instruction included. Optional Features: Brushless motor.

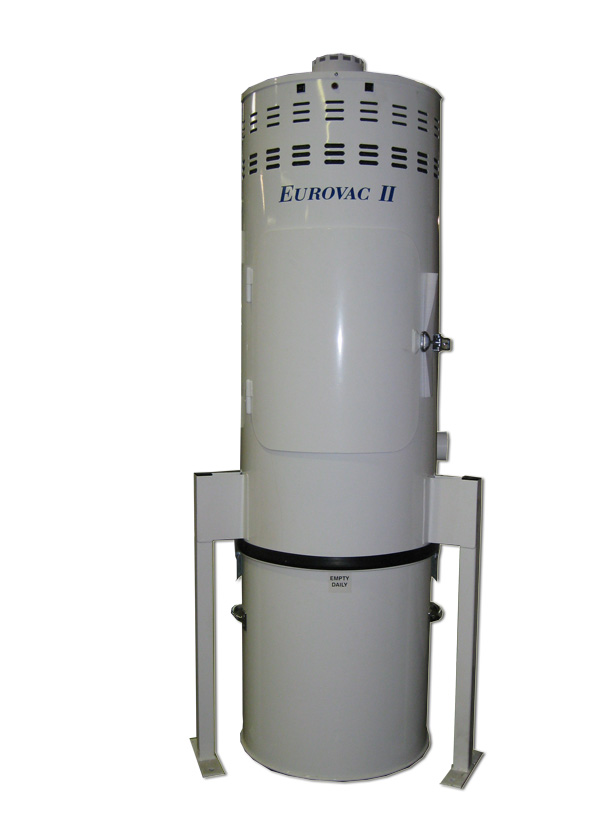

Eurovac II 5HP Central Vacuum System

Part #: SYS-050-0050000

Powerful 5HP Pump produces, 125” of water column and 232” of free flow CFM. Superior Filtration … Cyclonic filtration removes 99% of dust before the secondary filter. This results in the unit operating much more efficiently than units which do not have cyclonic filtration. The remaining 1% of dust is removed by a secondary cartridge filter which cleaned by compressed air pulse jet cleaning action. Quiet … Muffler and insulated motor housing reduce noise level below 65 dBA’s Properly Engineered Pipe … graduated 3” to 2” pipe maintains optimum velocity and reduces friction losses significantly compared to systems with 2” piping only. On/Off feature … Micro switch turns system on and off when hoses is plugged into the inlet. Easy to Install … complete installation instruction included. Optional Features: Automatic pulse cleaning system, leg mounted stand option, hepa filtration, brushless motor.

Eurovac II – 5HP (2 Man Detail Vacuum Systems)

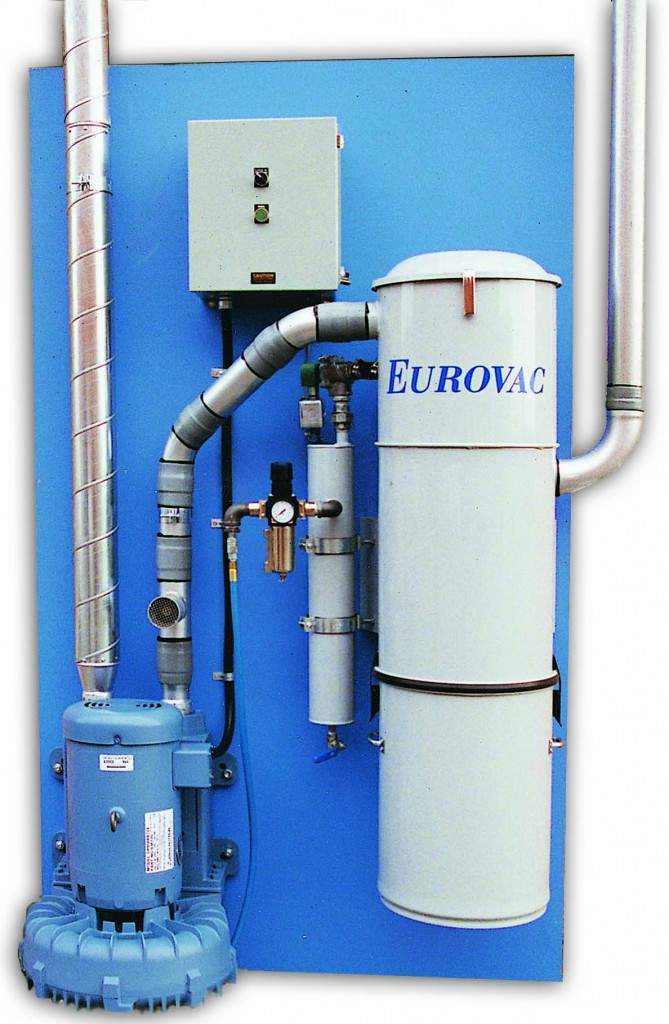

Eurovac I 5HP, 7HP & 10HP – “Board Mounted”

Eurovac I – Board Mount Systems utilize induction motors which are designed for nonstop operation and are rated to run over 20000 hours with little or no maintenance. The 18” diameter cyclonic separator with 1 polyester cartridge fi lter (30 square ft./323 square meter filter media) removes 99% of the dust up to 3 micron and the automatic compressed air pulse jet cleaning ensures very little maintenance. All systems include control panel and are available in three phase voltage, 60 or 50 hertz. System typically utilizes low voltage wiring to turn system on/off.

Optional Features:

Vinyl steel cabinet, special coatings, stainless steel contruction, special discharge options, magnehelic differential pressure gauge, bag equalization, photohelic gauge, etc. Custom system arrangements available upon request.

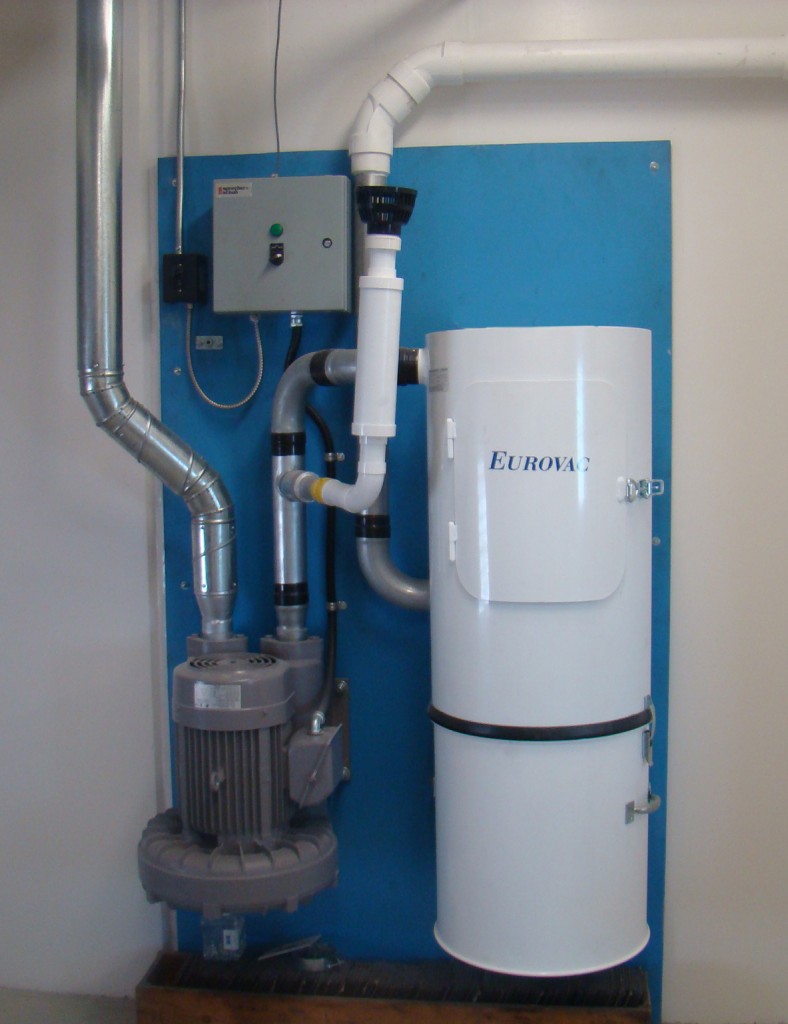

Eurovac I 5HP & 10HP – “Board Mounted” 2 & 3 User Detail Vacuum Systems

Eurovac I – Board Mount Systems utilize induction motors which are designed for nonstop operation and are rated to run over 20000 hours with little or no maintenance. The 18” diameter cyclonic separator with four (4) after bag filters removes 99% of the dust up to 3 micron and ensures very little maintenance. All systems include control panel and are available in three phase voltage, 60 or 50 hertz. System typically utilizes low voltage wiring to turn system on/off.

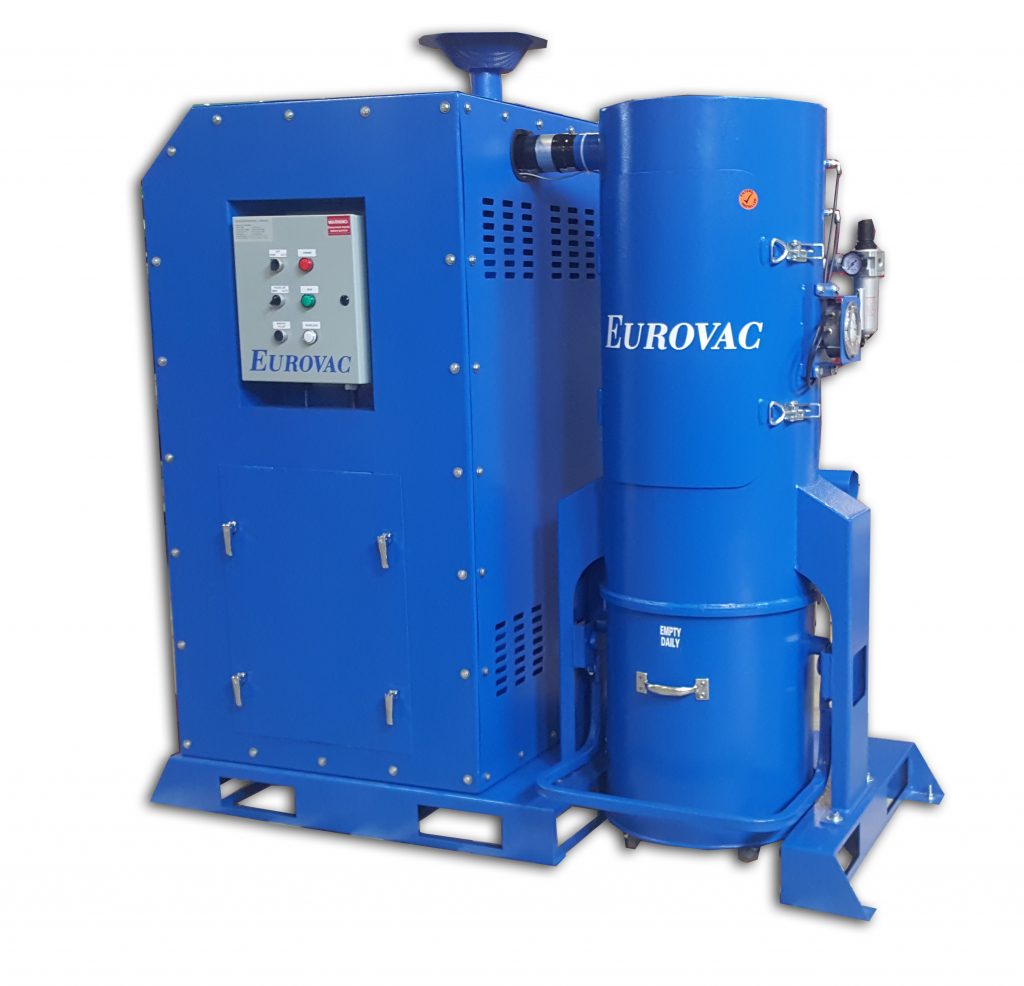

Eurovac I 5HP, 10HP & 20HP – “Combo Unit” 2, 3 & 4 User Detail Vacuum Systems

5HP Part #: SYS-030-100C00
10HP Part #: SYS-030-315C0000
20HP Part #: SYS-030-361C0000

Eurovac I – “Combo Unit” systems utilize induction motors which are designed for nonstop operation and are rated to run over 20000 hours with little or no maintenance. The 24” diameter cyclonic separator with eight (8) after bag filters removes 99% of the dust up to 3 micron and ensures very little maintenance. All systems include control panel and are available in three phase voltage, 60 or 50 hertz. System typically utilizes low voltage wiring to turn system on/off.

Optional Features:

Vinyl steel cabinet, special coatings, stainless steel contruction, special discharge options, magnehelic differential pressure gauge, bag equalization, photohelic gauge, etc. Custom system arrangements available upon request.

Eurovac I 5HP & 10HP – 18″FS Combo Unit

5HP (230/460/575v) Part #: EIC-P05-18132002 10HP (230/460v) Part #: EIC-P10-18132002 10HP (575v) Part #: EIC-P10-18135002 Description ● Design: Stand mount system which comes pre-wired from panel to pump and to the pulse jet cleaning. ● Blower: 20,000+ hrs of continuous use ● Filtration: Cyclonic filter separator, after polyester cartridge filter (42 sq. ft. filter media) (99.93% efficient at 3 microns or larger) and final automatic pulse jet cleaning ● Canister: 20 Gallon ● Controls: On/Off, Overload Protection, Run Light, Hour Meter, 24v Step Down Transformer (ie: Control of remote switches), Automatic Filter Cleaning ● Electrical: 208-240, 460 and 575 volts. 3 phase, 60 hertz. ● Includes: Silencer & cover for motor ● Includes: Magnahelic gauge (Indicates when pressure differential is too high and filters need replacement) ● Note: Unit is skid mounted for easy transportation Key Benefits ● Captures dangerous welding fumes before they enter the welder’s breathing zone ● Ideal for mig, tig, arc and robotic welding ● No lost production time moving largefume extraction arms every time the welder changes position ● Source capture welding guns or weldingattachments only require 80-100 CFM or less each; eliminating the need for costly air makeup systems required with high volume systems ● Several filter options are available, including combination cyclone separatorand polyester cartridge filters with automatic pulse jet cleaning Applications Industrial, Body Shop, Woodworking, Aerospace, Detail, Pharmaceutical, Boatbuilding, Transit, Military.
