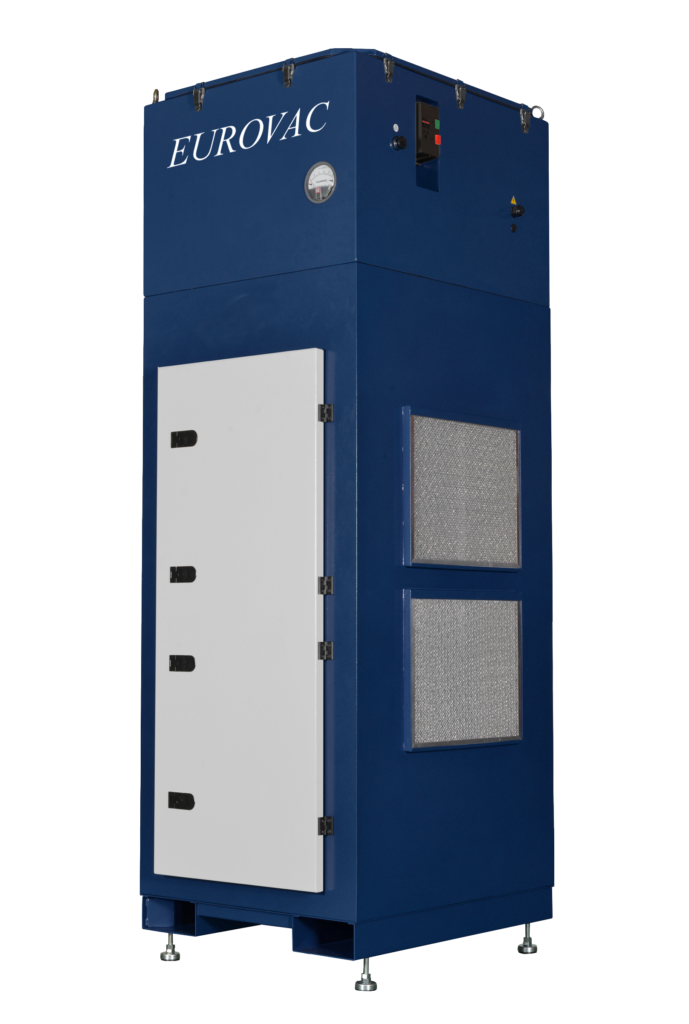

High Tower Air Cleaner

Part # AIL-05F-N0200000

The Eurovac High Tower Air Cleaner is an ideal option for secondary source capture of particulate that may have escaped the primary source capture method such as vacuum MIG guns or fume arms. • Powerful 5HP fan with aluminum impeller • Excellent filtration with four (4) aluminum mesh pre-filters to capture sparks and steel chips followed by two (2) secondary cartridge filters • Available with automatic pulse jet cleaning and optional HEPA filtration upgrade • Mounted on heavy duty welded tubular steel frame with a powder coat finish and with a 4” poly rear wheels and 2” swivel (lockable) front wheels. Unit is also available in stainless steel. Equipment Specs: ● Blower: 5HP Fan with aluminum impeller (3135 CFM) ● Filtration: Qty 4 – Aluminum Mesh Pre-Filters, Qty 2 – Secondary Cartridge Filters and final automatic pulse jet cleaning ● Controls: Controls: On/Off, Overload Protection, Run Light, Hour Meter, 120v Step Down Transformer, Automatic Filter Cleaning & Off Line Cleaning Cycle ● Electrical: 208, 240, 460 and 575 volts. 3 phase, 60 hertz. (Single phase available upon request) ● Dimensions: 36″ x 39″ x 102″ Note: ● Filters can be changed to carbon upon request. Automatic pulse jet cleaning is not provide if carbon filters are supplied

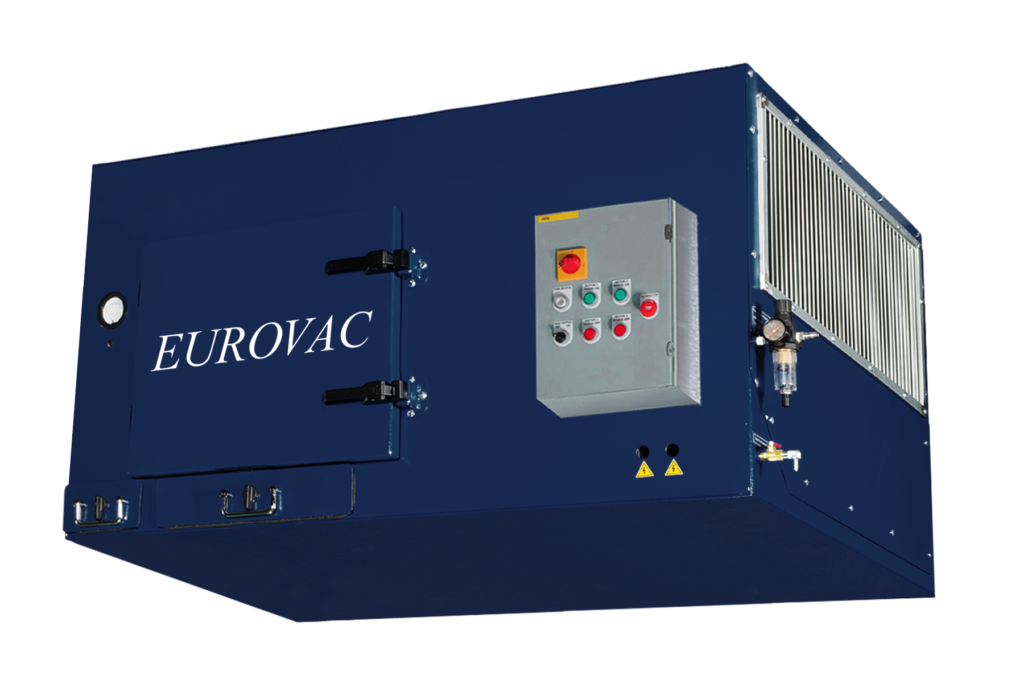

2HP Overhead Air Cleaner

Part # AIO-02F-N0400000 (No Pulse Cleaning)

Part # AIO-02F-N04P0000 (With Pulse Cleaning)

Eurovac Overhead Air Cleaners are ideal options for secondary source capture of particulate that may have escaped the primary source capture method such as vacuum MIG guns or fume arms. • 2HP Fan • Excellent two-stage filtration with four (4) aluminum mesh pre-filters to capture sparks and steel chips followed by four (4) secondary cartridge filters • Available with optional final automatic pulse jet cleaning • Constructed in 8-gauge to 14-gauge heavy duty steel Equipment Specs: ● Blower: Fan with aluminum impeller ● Filtration: Qty 4 – Aluminum Mesh Pre-Filters, Qty 4 – Secondary Cartridge Filters (645 sq ft) and optional final automatic pulse jet cleaning ● Controls: Controls: On/Off, Overload Protection, Run Light, Hour Meter, ● Controls w/ Auto Pulse: On/Off, Overload Protection, Run Light, Hour Meter, 120v Step Down Transformer, Automatic Filter Cleaning & Off Line Cleaning Cycle ● Electrical: 208, 240, 460 and 575 volts. 3 phase, 60 hertz. (Single phase available upon request)

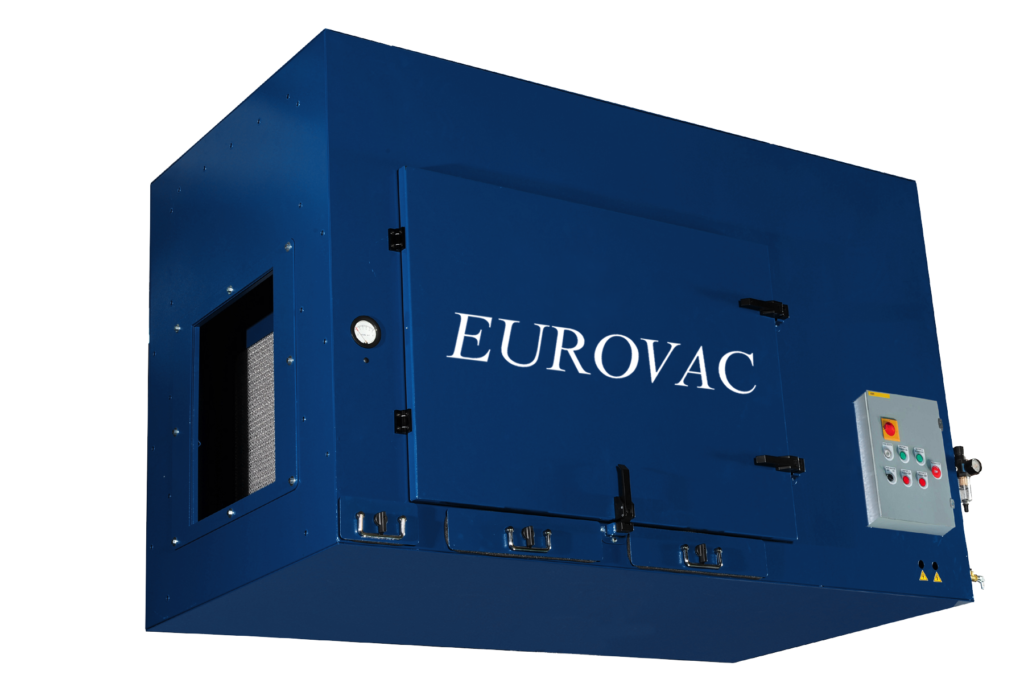

5HP Overhead Air Cleaner

Part # AIO-05F-N0400000 (No Pulse Cleaning)
Part # AIO-05F-N04P0000

Eurovac Overhead Air Cleaners are ideal options for secondary source capture of particulate that may have escaped the primary source capture method such as vacuum MIG guns or fume arms. • 5HP Fan • Excellent two-stage filtration with four (4) aluminum mesh pre-filters to capture sparks and steel chips followed by four (4) secondary cartridge filters • Available with optional final automatic pulse jet cleaning • Constructed in 8-gauge to 14-gauge heavy duty steel Equipment Specs: ● Blower: Fan with aluminum impeller ● Filtration: Qty 4 – Aluminum Mesh Pre-Filters, Qty 4 – Secondary Cartridge Filters (645 sq ft) and optional final automatic pulse jet cleaning ● Controls: Controls: On/Off, Overload Protection, Run Light, Hour Meter, ● Controls w/ Auto Pulse: On/Off, Overload Protection, Run Light, Hour Meter, 120v Step Down Transformer, Automatic Filter Cleaning & Off Line Cleaning Cycle ● Electrical: 208, 240, 460 and 575 volts. 3 phase, 60 hertz. ● 5HP Dimensions: 76″ x 44″ x 49″
