Portable Vacuum Systems

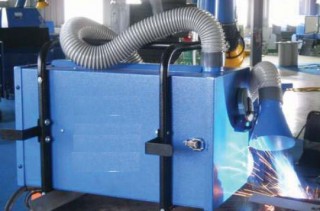

Eurovac II – Hand Held Portable Fume Collector
Part #SYS-050-186
Portable extractor for capturing: •Welding Fumes •Grinding Dusts •Soldering Dusts Filtration – 5 Stage 1. Stainless Filter captures up to 95% of sparks and steel chips down to 1 micron 2. Prefilter captures 35% of the 2-10 micron small particles and absorbs oils to extend the life of the pleated and HEPA filter 3. Prefilter captures 85% of 1-2 micron small particles and absorbs oil to extend the life of the pleated and HPEA filter 4. Pleated Filter to filter fine dusts 5. Pleated HEPA filter captures up to 95% of the 0.3 micron noxious fumes. (meets OSHA Hexavalent Chromium Standards) *Optional carbon filter for gas and fume 230 CFM @ Hood 2 speed control for high/low CFM
Eurovac II – 2.5HP “Cyclonic” Welding Portable
Part # SYS-050-18500200
The Eurovac II compact sanding portable offers the following features: ● Blower: 2.5HP – 1300 watt motor (120CFM / 115″ Water Column) 55 CFM at 60″ WG 68 CFM at 50″ WG 80 CFM at 40″ WG 89 CFM at 30″ WG 100 CFM at 20″ WG ● Filtration: Cyclonic separation with internal wall guarding filter from the dust upon entry (removes 85%+ of the dust). Final nanofiber cartridge filter (99.93% at 3 microns or larger) ● Canister: 10 Gallon ● Dimensions: 24″W x 18″D x 53″H ● Sound Level: 76 dBa ● Electrical Cord with plug: 15′ ● Electrical: 115/1/60 – 13.9 amp (US / Canada) ● Alt Electrical Upon Request: 230 Volt 1Ph 50Hz 1400 Watt (UK) 220 Volt 1Ph 60Hz 1400 Watt (Europe) ● Dba: 76 @ 3M ● Vacuum Switch: On/Off – 2 Position Switch ● Includes: Qty 1 – 1-1/2″ Anti-static Vacuum Hose

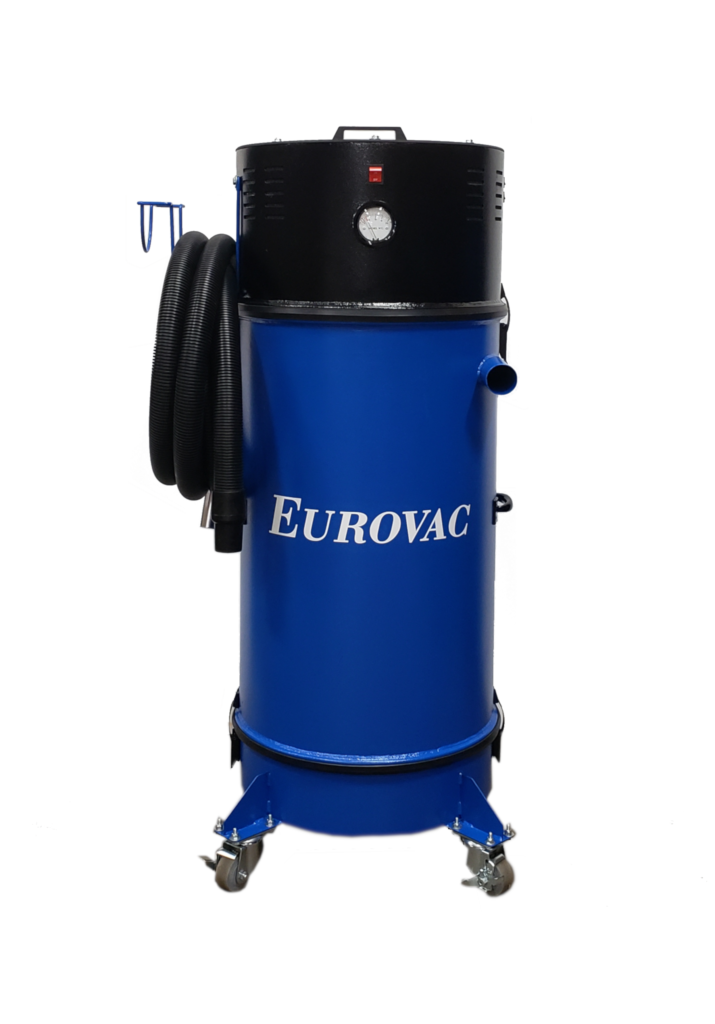

Eurovac II – 4.6HP Welding Portable
Part # POR-P46-B02F0005
• Unit comes standard with two 2.3HP brush motors for 4000 hrs of intermittent duty • Superior Filtration: Cyclonic filter separator & final nanofiber filter (200 ft.2 filter media) effectively captures 99.93% of particles at 3 microns or larger • Electrical: 1 Phase 60 Hertz 220/120 (4 wire: 2 Hot, 1 Neutral & 1 Ground). Nema #L1420P plug provided. • Includes one 2“x15’ anti-static vacuum hose & blue hose/tool hanger • Optional upgrade to HEPA filtration available

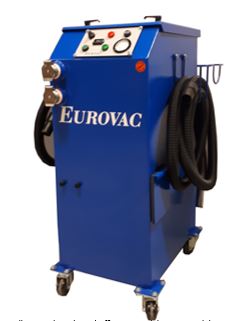

Eurovac I – “Eliminator” Welding Portable Vacuum
Part # SYS-050-W03-SQ144M00
Description 3HP (98 CFM/75” water column), 5HP (116CFM/100” water column) and 7.5HP (200CFM/100” water column) – Airflow shown is operating levels. 208-240, 460 and 575/3/60Hz or 50Hz models available* Filter area: 130ft2 (3HP) & 278ft2 (5HP & 7.5HP); 99.93% at 3 microns or larger 20,000+ hours of continuous use Manual and automatic pulse jet cleaning system PLC device for filter monitoring and speed control Multiple inlet (2“ per inlet) Optional HEPA filtration available

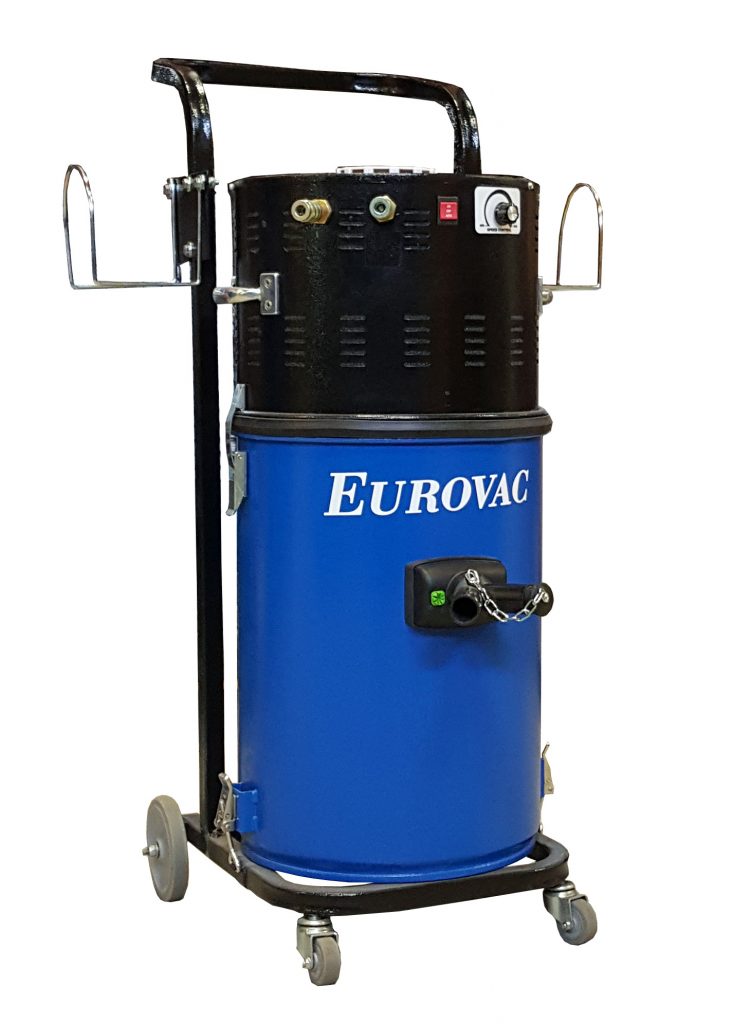

Eurovac II – 2.5HP “Compact” Housekeeping Portable
Part #: SYS-050-178
Description The Eurovac II 2.5HP “Compact” portable offers the following features: Powerful 2.5HP, 1400 watt pump has sufficient suction for 2 technicians to sanding or 1 technician to vacuuming at the same time. Produces 117” of water column; 113 free flow CFM. Eurovac utilizes a “By Pass” motor that does not allow dust to pass through the motor and ensures a long lasting pump with little to no maintenance. Quiet operation…motor is turned on and off automatically by air switches when tools are activated. This increases the life of the motor and reduces energy costs of running the motor. Includes HEPA filtration which removes the remaining 99.97% of sanding dust to a minimum of .3 micron particle. Heavy duty construction of 14 gauge steel with a tough powder coat finish. Disposable paper bag filter secured inside steel drum for convenient collection and disposal of particulate. Compact design and collapsible handle allows for easy transportation Includes: 1.5″ Anti-Static Shop Cleaning Package & Blue Hose Hanger Applications Industrial, Body Shop, Woodworking, Aerospace, Detail, Pharmaceutical, Boatbuilding, Transit, Military.

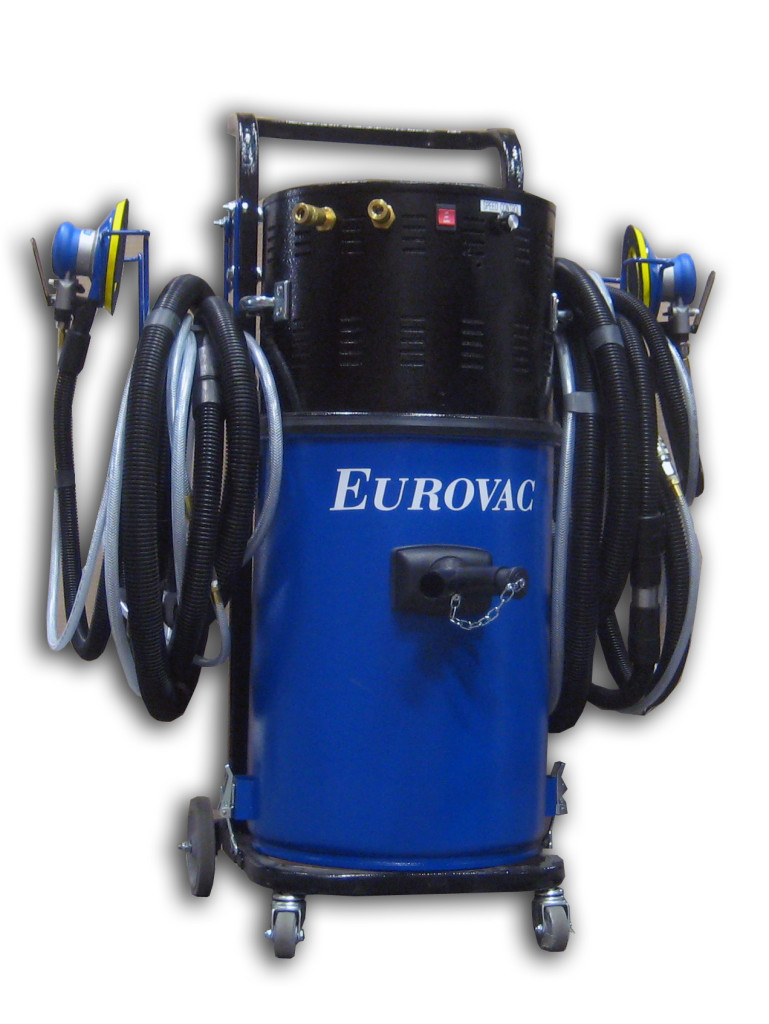

Eurovac II – 2.5HP “Compact” Sanding Portable
Part #: SYS-050-179
Description The Eurovac II 2.5HP “Compact” portable offers the following features: Powerful 2.5HP, 1400 watt pump has sufficient suction for 2 technicians to sanding or 1 technician to vacuuming at the same time. Produces 117” of water column; 113 free flow CFM. Vacuum speed dial to ensure you get just the proper amount of airflow and suction.. Quiet operation…motor is turned on and off automatically by air switches when tools are activated. This increases the life of the motor and reduces energy costs of running the motor. Includes HEPA filtration which removes the remaining 99.97% of sanding dust to a minimum of .3 micron particle. Heavy duty construction of 14 gauge steel with a tough powder coat finish. Disposable paper bag filter secured inside steel drum for convenient collection and disposal of particulate. Compact design and collapsible handle allows for easy transportation Includes two 25’ x 1 1/4” to 1” light weight anti-static vacuum hoses with 1/4” airlines attached whereby the vacuum hoses and airlines become one unit. Applications Industrial, Body Shop, Woodworking, Aerospace, Detail, Pharmaceutical, Boatbuilding, Transit, Military.

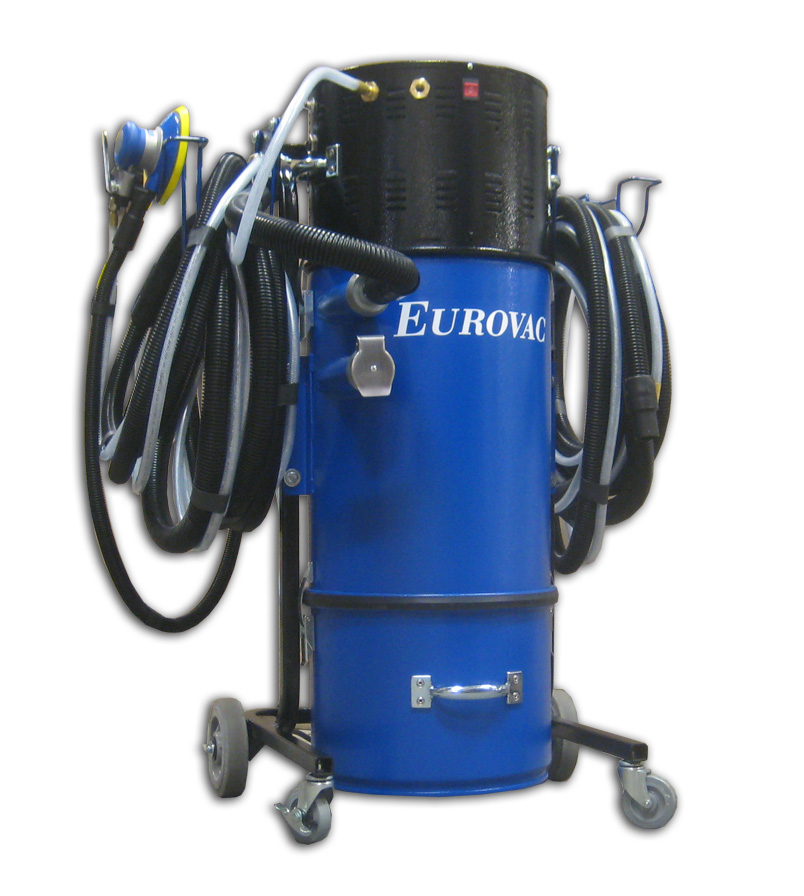

Eurovac II “Compact Cyclonic” Housekeeping Portable
Part #: SYS-050-18600000
Description The Eurovac II “Compact Cyclonic” sanding portable offers the following features: Powerful 2.5HP, 1440 watt pump produces 117” of water column; 113 free flow CFM. Quiet operation particularly for fine dust… motor housing is insulated and baffled for sound. On/off feature two position switch. Superior filtration … combination true cyclonic filtration plus secondary cartridge filter, a standpipe surrounding the cartridge filter does not allow the particulate air entering the inlets to go directly to the cartridge filter. The standpipe forces the air to move down the canister to the cyclone where 85% of the particulate is removed before the secondary cartridge filter . This results in the unit operating much more efficiently than units which do not have true cyclonic filtration. HEPA filtration is available by adding a chamber between the pump and regular filters. The HEPA filter removes the remaining 99.97% of sanding dust to a minimum of .3 micron particle. Includes one 1.5″ anti-static shop cleaning package. Applications Industrial, Body Shop, Woodworking, Aerospace, Detail, Pharmaceutical, Boatbuilding, Transit, Military.

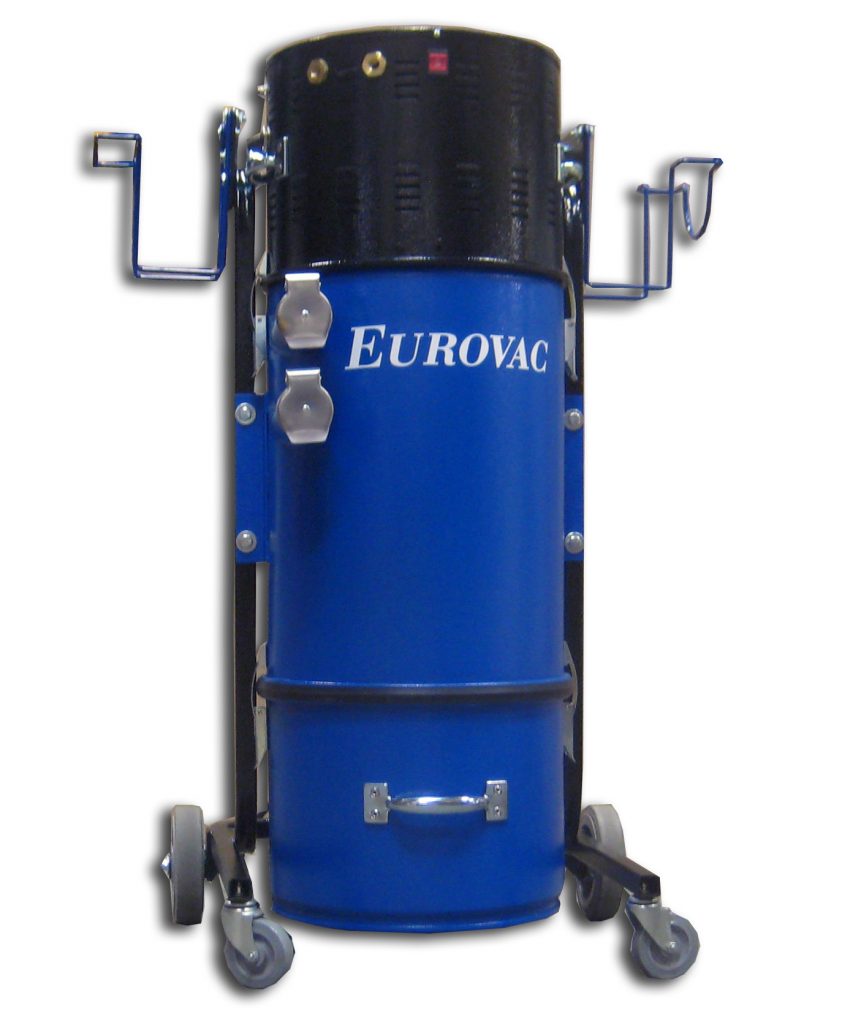

Eurovac II – 2.5HP “Compact Cyclonic” Sanding Portable
Part #: SYS-050-18100000
Description The Eurovac II “Compact Cyclonic” sanding portable offers the following features: Powerful 2.5HP, 1440 watt pump produces 117” of water column; 113 free flow CFM. Quiet operation particularly for fine dust… motor housing is insulated and baffled for sound. On/off feature…motor is turned on and off automatically by air switches when pneumatic tools are activated. This increases the life of the motor and reduces energy costs of running the motor. Superior filtration … combination true cyclonic filtration plus secondary cartridge filter, a standpipe surrounding the cartridge filter does not allow the particulate air entering the inlets to go directly to the cartridge filter. The standpipe forces the air to move down the canister to the cyclone where 85% of the particulate is removed before the secondary cartridge filter . This results in the unit operating much more efficiently than units which do not have true cyclonic filtration. HEPA filtration is available by adding a chamber between the pump and regular filters. The HEPA filter removes the remaining 99.97% of sanding dust to a minimum of .3 micron particle. Includes two 25’ x 1 1/4” to 1” light weight anti static vacuum hoses with ¼” air lines attached to the vacuum hoses and airlines become one unit. The system can also be used to clean up cars and the shop/office areas with a full range of cleaning accessories. Applications Industrial, Body Shop, Woodworking, Aerospace, Detail, Pharmaceutical, Boatbuilding, Transit, Military.

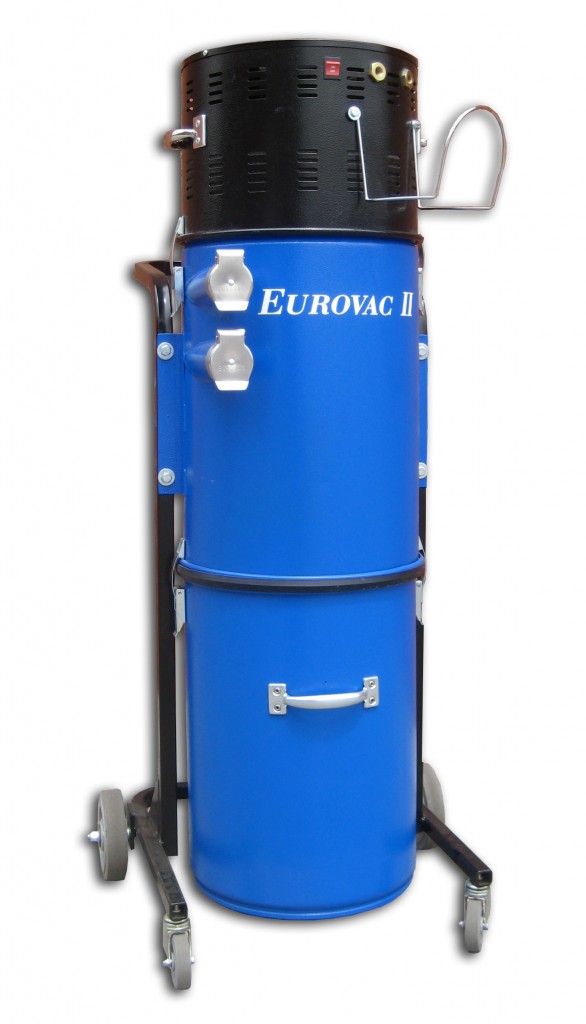

Eurovac II – 2.5HP “Cyclonic” Housekeeping Portable
Part #: SYS-050-18000200
Description The Eurovac II cyclonic portable offers the following features: Powerful 2.5HP, 1440 watt pump produces 117” of water column; 113 free flow CFM. Quiet operation particularly for fine dust… motor housing is insulated and baffled for sound. On/off feature…motor is turned on and off automatically by air switches when pneumatic tools are activated. This increases the life of the motor and reduces energy costs of running the motor. Alternatively a togggle switch can be used for simple housekeeping. Superior filtration … combination true cyclonic filtration plus secondary cartridge filter, a standpipe surrounding the cartridge filter does not allow the particulate air entering the inlets to go directly to the cartridge filter. The standpipe forces the air to move down the canister to the cyclone where 85% of the particulate is removed before the secondary cartridge filter (see diagram below). This results in the unit operating much more efficiently than units which do not have true cyclonic filtration. HEPA filtration is available by adding a chamber between the pump and regular filters. The HEPA filter removes the remaining 99.97% of sanding dust to a minimum of .3 micron particle. Eurovac offers a full range of vacuum ready tools, antistatic conductive vacuum hoses, wands and cleaning tools. Applications Industrial, Body Shop, Woodworking, Aerospace, Detail, Pharmaceutical, Boatbuilding, Transit, Military.

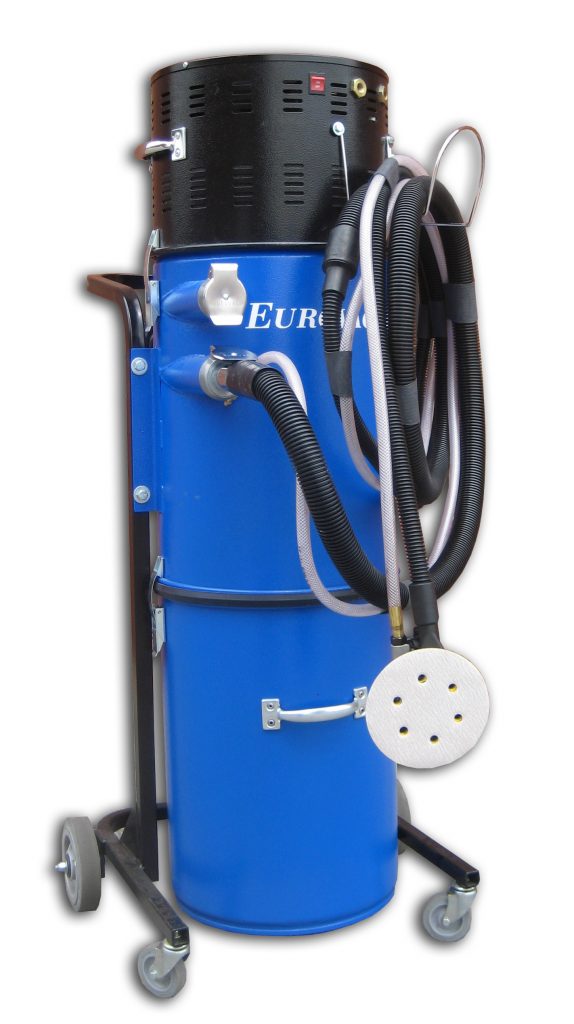

Eurovac II 2.5HP “Cyclonic” Sanding Portable
Part #: SYS-050-18000200
Description The Eurovac II cyclonic portable offers the following features: Powerful 2.5HP, 1440 watt pump produces 117” of water column; 113 free flow CFM. Quiet operation particularly for fine dust… motor housing is insulated and baffled for sound. On/off feature…motor is turned on and off automatically by air switches when pneumatic tools are activated. This increases the life of the motor and reduces energy costs of running the motor. Alternatively a togggle switch can be used for simple housekeeping. Superior filtration … combination true cyclonic filtration plus secondary cartridge filter, a standpipe surrounding the cartridge filter does not allow the particulate air entering the inlets to go directly to the cartridge filter. The standpipe forces the air to move down the canister to the cyclone where 85% of the particulate is removed before the secondary cartridge filter (see diagram below). This results in the unit operating much more efficiently than units which do not have true cyclonic filtration. HEPA filtration is available by adding a chamber between the pump and regular filters. The HEPA filter removes the remaining 99.97% of sanding dust to a minimum of .3 micron particle. Eurovac offers a full range of vacuum ready tools, antistatic conductive vacuum hoses, wands and cleaning tools. Applications Industrial, Body Shop, Woodworking, Aerospace, Detail, Pharmaceutical, Boatbuilding, Transit, Military.
