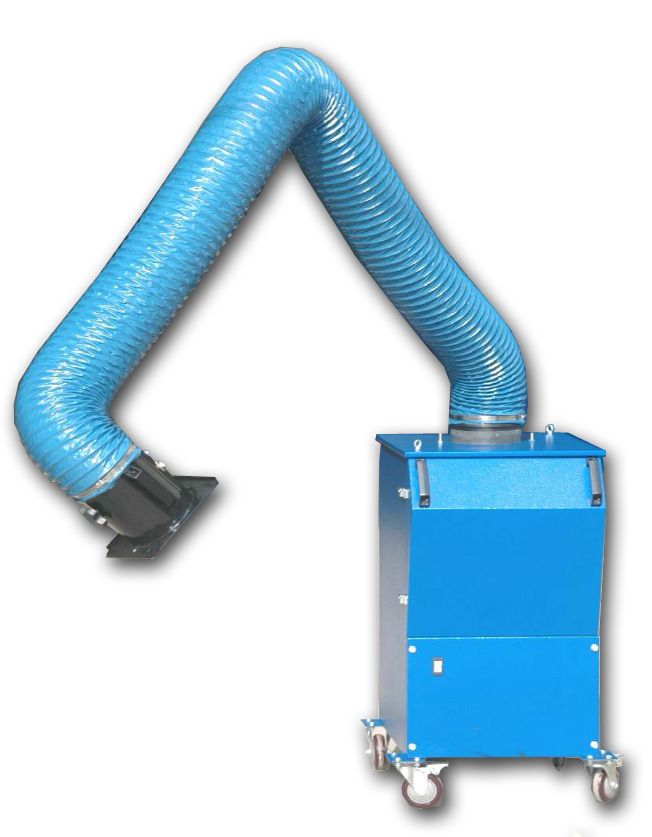

Eurovac II – Hand Held Portable Fume Collector

Part #SYS-050-186

Portable extractor for capturing: •Welding Fumes •Grinding Dusts •Soldering Dusts Filtration – 5 Stage 1. Stainless Filter captures up to 95% of sparks and steel chips down to 1 micron 2. Prefilter captures 35% of the 2-10 micron small particles and absorbs oils to extend the life of the pleated and HEPA filter 3. Prefilter captures 85% of 1-2 micron small particles and absorbs oil to extend the life of the pleated and HPEA filter 4. Pleated Filter to filter fine dusts 5. Pleated HEPA filter captures up to 95% of the 0.3 micron noxious fumes. (meets OSHA Hexavalent Chromium Standards) *Optional carbon filter for gas and fume 230 CFM @ Hood 2 speed control for high/low CFM

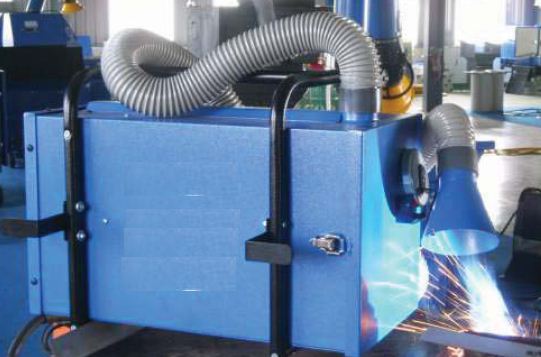

1HP “Boxair” Portable Fume Extractor

Part #: SYS-070-45006100

Designed to capture, filter and exhaust air impurities created during welding, metal processing or workshop activities. Two stage filtration system: spark trap and a main spun bond polyester cartridge filter. Powder coated steel body and has four heavy duty casters to help position the unit in the workspace. Features 700 CFM @ Hood Spark Trap Large Wheels Cassette Filter Single phase operation Arm Diameter: 6” Arm Length: 7’ Optional Hepa Filter Key Benefits Meets OSHA air quality standards Avoid health and safety hazards that cause respiratory ailments Reduce make-up air requirements by cleaning and re-circulating the air Cut maintenance costs by eliminating smoke and dust before particles can settle on equipment and work surfaces
