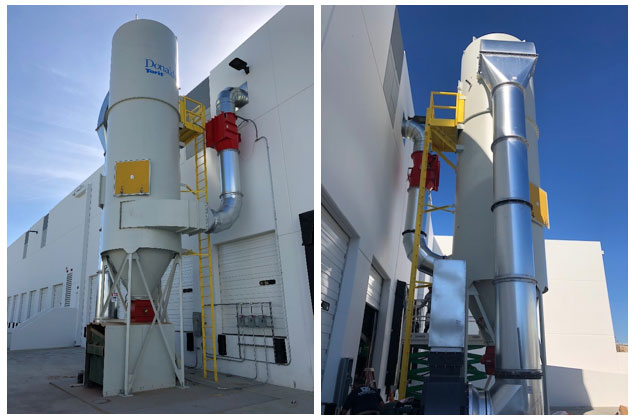

LOCATION: San Diego County, CA

• APPLICATION: Woodworking
• COLLECTOR: Donaldson Torit Model 124-RFW-10 Baghouse w/ Walk In Style Plenum
• NUMBER OF FILTERS: 124 – 80” ULTRA WEB SB Pleated Filter Bags
• DESIGNED AIRFLOW: 15,000 CFM @ 15” s.p. Achieved with a 50 HP Air Pro Fan
• CONTROLS: Donaldson Torit VFD Airflow Controller Control Panel
• ACCESSORIES: (1) Boss 22” VLD Rotary Airlock & (1) Boss VIGIFLAP Meeting the NFPA Standards
• PROJECT DESCRIPTION: New Installation of a dust collection system for an existing Woodshop for (12) woodworking machines.

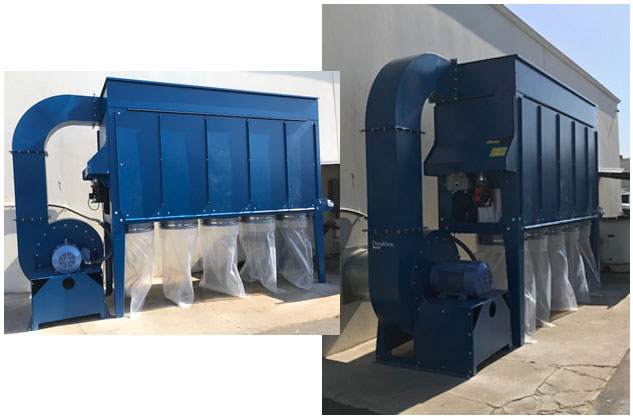

LOCATION: Orange County, CA

• APPLICATION: Woodworking
• COLLECTOR: 560-IR-30 w/ Weather Kit
• NUMBER OF FILTERS: (35) 7” Dura-Life Filter Bags
• DESIGNED AIRFLOW: 8,500 CFM
• CONTROLS: Push Button Magnetic Fan Starter
• ACCESSORIES: Auto-shaker with Interlock, Timer & Controls
• PROJECT DESCRIPTION: Dust Collection System ducted to three (3) CNC machines and misc. woodworking equipment.

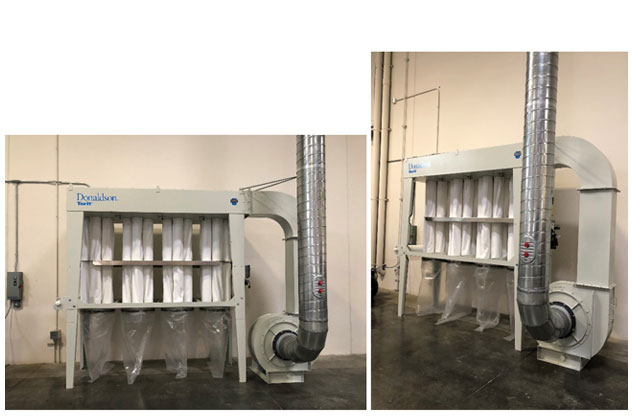

LOCATION: Riverside County, CA

• APPLICATION: Woodworking
• COLLECTOR: 460-IR-15
• NUMBER OF FILTERS: (28) 7” Dura-Life Filter Bags
• DESIGNED AIRFLOW: 4,500 CFM
• CONTROLS: Push Button Magnetic Fan Starter
• ACCESSORIES: Auto-shaker with Interlock, Timer & Controls
• PROJECT DESCRIPTION: Dust Collection System ducted to misc. woodworking equipment.

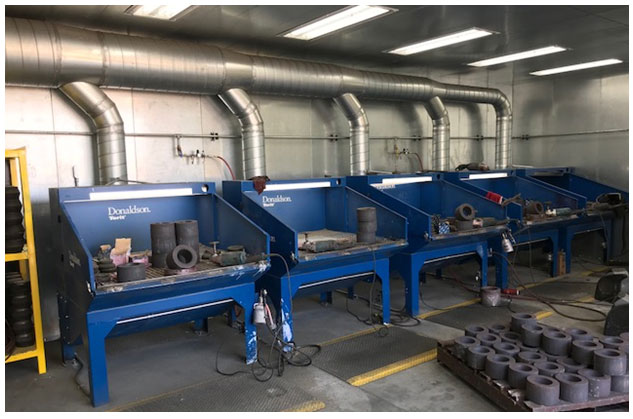

LOCATION: Los Angeles County, Ca

• APPLICATION: Grinding/Deburring
• COLLECTOR: (5) Donaldson Torit Remote Downdraft Bench (RDB)
• NUMBER OF FILTERS: Connected to (1) Centralized Dust Collection System
• DESIGNED AIRFLOW: 10,000 CFM
• PROJECT DESCRIPTION: Custom Fabricated Enclosure to meet AQMD Rule 1155, designed to contain dust generated from forging applications.

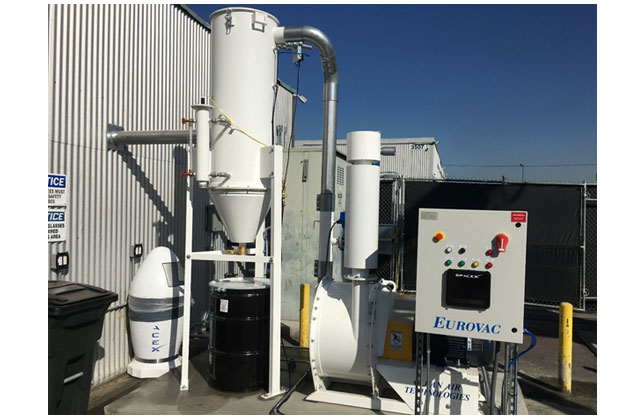

LOCATION: Los Angeles County, CA

• APPLICATION: Tooling
• COLLECTOR: Eurovac Wet Vac System
• DESIGNED AIRFLOW: 1,200 CFM
• PROJECT DESCRIPTION: Wet Type Central Vac System designed for the Source Capture of Aluminum dust generated by orbital sanders, hole saws, grinders, etc.

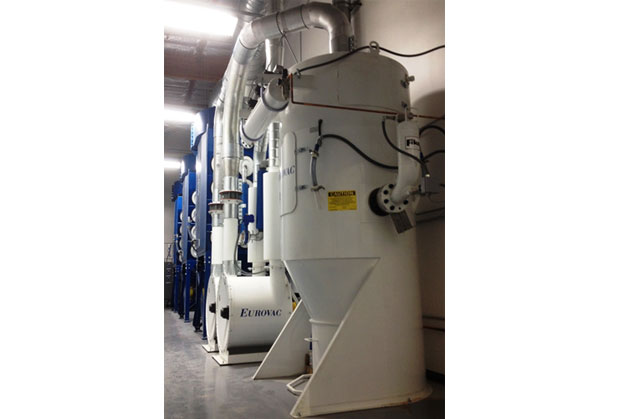

LOCATION: San Diego County, CA

• APPLICATION: (3) Donaldson Torit DFO 3-24 Dust Collection Systems
• COLLECTOR: (3) Donaldson Torit DFO 3-24 Dust Collection Systems
  (1) Eurovac High Vacuum System
• ACCESSORIES: Dust Collectors & Central Vac Systems all equipped with a FIKE Explosion Suppression System
• PROJECT DESCRIPTION: Dust Collectors are ducted to a sanding booth to contain ambient dust and the vac systems are ducted to tooling in the booth and housekeeping throughout the facility.

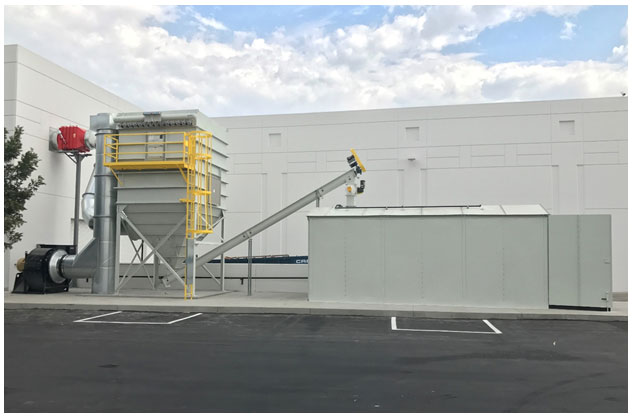

LOCATION: Orange County, CA

• APPLICATION: Woodworking
• COLLECTOR: 196-FS-8 Baghouse
• NUMBER OF FILTERS: Ultra-Web SpunBond Pleated Filter Bags
• DESIGNED AIRFLOW: 26,000 CFM with 100 HP Fan
• CONTROLS: VFD Airflow Controller
• ACCESSORIES: (1) Boss Products Non-Return Valve (NRV)
• PROJECT DESCRIPTION: City required the dust collector to be below 24’T and not exceed the height of the building. With this we designed the system with an elevated Screw that would dump into a 40 Yard dumpster enclosed in a Bin House.

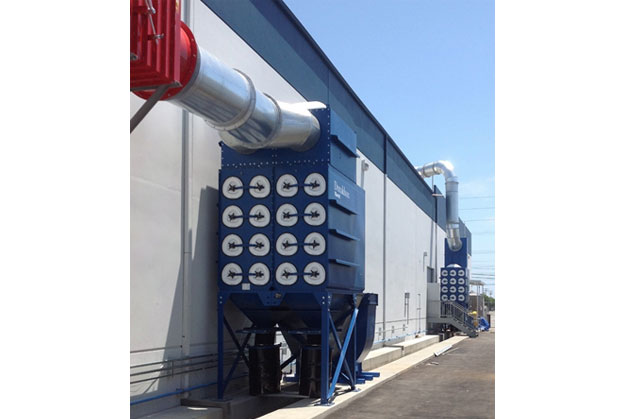

LOCATION: Los Angeles County, CA

• COLLECTOR: (1) Donaldson Torit DFE 4-32 and (1) Donaldson Torit DFE 4-24
• NUMBER OF FILTERS: System No. 1 required (32) Filters and System No. 2 required (24) Filters. Both Systems utilize the Donaldson Torit Ultra Web Filter technology.
• DESIGNED AIRFLOW: 20,000 CFM & 24,000 CFM
• ACCESSORIES: (2) Boss Products Non-Return Valve (NRV)
• PROJECT DESCRIPTION: Collectors were required to be installed over an existing water drainage area. A platform was built under the collector to support the Drums for both units. A similar Bridge Structurally designed was custom fabricated to support the weight of each fan. Each dust collector is ducted to sanding booth, which was also designed & installed by DCS.

LOCATION: Riverside County, CA

• APPLICATION: Aluminum Sanding
• COLLECTOR: Donaldson Torit DFE 5-80 Dust Collection System
• NUMBER OF FILTERS: Qty 80 – Donaldson Torit Ultra Web Filters
• DESIGNED AIRFLOW: 60,000 CFM
• CONTROLS: VFD Airflow Controller
• ACCESSORIES: (1) Boss Products Non-Return Valve (NRV) – Unit was painted to color match the building to meet City Requirements
• PROJECT DESCRIPTION: Replaced existing Torit ECB Modules in five (5) separate sanding booths with custom fabricated plenums designed similar to the modules.

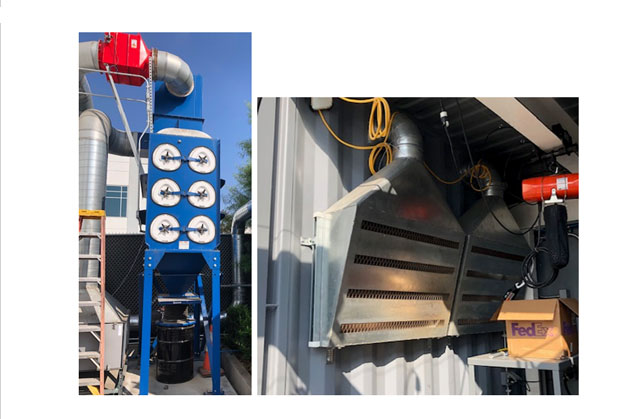

LOCATION: Los Angeles County, CA

• APPLICATION: Plasma Cutting
• COLLECTOR: Donaldson Torit DFE 3-12
• NUMBER OF FILTERS: Qty 12 – Donaldson Torit Ultra Web FR Filters
• DESIGNED AIRFLOW: 3,000 CFM
• CONTROLS: VFD Airflow Controller
• ACCESSORIES: (1) Boss Products Non-Return Valve (NRV) Automatic Blast Gate
• PROJECT DESCRIPTION: Customer does Plasma Cutting, heavy grinding & deburring of cast items from their foundry.
