TORIT® POWERCORE®
DUST COLLECTORS - TG SERIES


Smaller

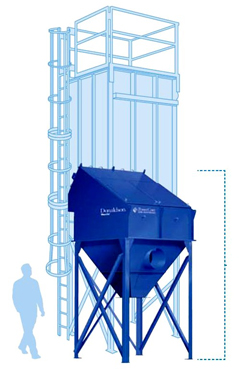

Just how small is Torit PowerCore? A stand-alone Torit PowerCore dust collector is 50% smaller than a traditional baghouse and a bin vent bag collector is up to 70% smaller than other bag bin systems. With Torit PowerCore, you can save space, install at point of use, eliminate duct work and replace a large central dust collector.

Tired of changing big, dirty filter bags? One 7-in. PowerCore filter pack replaces six 8-ft. standard fabric filter bags. Removed with one hand and no tools in minutes—not hours or days—PowerCore filter packs save time, maintenance and money.

Smarter

It’s smart to switch to a Torit PowerCore dust collector. It's much more compact than a traditional baghouse because it uses significantly smaller and more powerful filter packs. Torit PowerCore collectors provide better dust collection, require less steel, save transportation costs, and lower operational costs.

What makes Torit PowerCore so smart? The key is PowerCore filter packs. Combining Donaldson Torit’s proven and patented Ultra-Web surface-loading technology with a rugged fluted-media configuration, PowerCore filter packs last longer, clean easier, lower emissions, and eliminate bridging.

Smaller, Smarter Collectors

Want more flexibility to downsize your baghouse dust collector or install at point-of-use? Now you can. Smaller and smarter Torit PowerCore dust collectors with PowerCore filter packs provide more flexibility than ever.

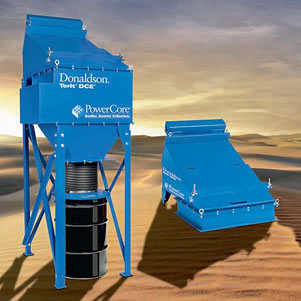

Stand-alone

Smaller and smarter Torit PowerCore stand-alone dust collectors are up to 50% smaller than traditional baghouses and can be ducted to many different applications. Available in a range of airflows, from 800 to 20,000 cfm, stand-alone Torit PowerCore dust collectors use less floor space and fit into tight spaces.

Bin Vent

Torit PowerCore bin vent systems, with airflows of 540 to 8,040 cfm, are up to 70% smaller than traditional bin vents. Delivering more powerful technology in a much smaller package, these bin vents can be installed at point-of-use on silos, conveyor transfer points, conveyor discharges, blenders and mixers.

Patented Pulse Cleaning

The combination of PowerCore filter packs and our patented Compact Oblique Pulse Cleaning System is the key to longer filter life. Designed to match our filter pack’s shape, the pulse flow spans the entire media pack, easily pulses dust from the fluted channels, enhances filtration efficiency and keeps pressure drop low.



Model
Nominal Airflow Range* (cfm)
No. of Filter Packs
PowerCore Filter Area (ft2)
No. of Valves
Shipping Weight (lbs)
Dimensions (inches)
Width
Height
Depth
CPC-3 800 - 2,010 3 201 3 900 45.0 118.1 57.4
CPC-4 1,070 - 2,680 4 268 4 1100 56.0 127.1 58.1
CPC-6 1,600 - 4,020 6 402 6 1300 44.4 141.6 65.2
CPC-8 2,140 - 5,360 8 536 8 1685 55.4 140.3 65.2
CPC-12 3,220 - 8,040 12 804 12 2100 77.4 149.3 65.2
CPC-16 4,280 - 10,720 16 1072 16 2915 84.2 169.2 83.5
CPC-24 6,440 - 16,080 24 1608 24 3880 126.2 152.2 83.5
CPC-32 8,560 - 21,440 32 2144 32 5310 168.2 169.2 83.5
CPC-48 12,880 - 32,160 48 3216 48 7760 252.2 169.2 83.5
CPV-2 540 - 1,340 2 134 2 320 27.8 36.9 56.4
CPV-3 800 - 2,010 3 201 3 400 38.8 36.9 57.3
CPV-4 1,070 - 2,680 4 268 4 500 49.8 36.9 58.0
CPV-6 1,600 - 4,020 6 402 6 655 38.8 38.1 63.0
CPV-8 2,140 - 5,360 8 536 8 800 49.8 38.1 63.0
CPV-12 3,220 - 8,040 12 804 12 1130 71.8 38.1 63.0
* Based on clean filters.

Smaller, Smarter Filters

Smaller PowerCore filter packs are the key to smarter baghouse dust collection. A Torit PowerCore dust collector with 20,000 cfm requires only 48 filter packs whereas a traditional baghouse with the same airflow has 256 filter bags.

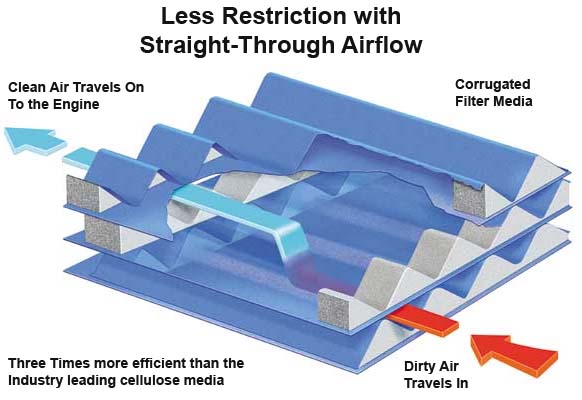

PowerCore filter packs using proven and patented Ultra-Web® technology combined with a rugged fluted-media configuration are unlike filter bags. Alternately sealed fluted channels allow air to enter through an open flute on the dirty side of the pack and force the air to exit out an adjacent flute on the clean side.



The mesh-like Ultra-Web media layer traps even submicron dust on the surface of the PowerCore filter pack, so dust easily pulses off during cleaning. Because surface loading helps prevent plugging, PowerCore filter packs last longer and filter better while using less energy compared to traditional 16 oz. polyester filter bags.

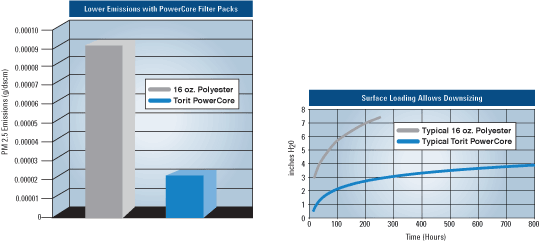

PowerCore filter packs provide up to 78% fewer emissions than polyester filter bags as proven by flat sheet testing at independent labs. This means cleaner air and greater product recovery.

Dust doesn’t depth load with PowerCore filter packs. Pressure drop starts high and rises quickly with traditional depth-loading filter bags, using more energy. PowerCore filter packs with surface-loading Ultra-Web technology maintain lower operating pressure drop for longer time, reducing energy costs.
