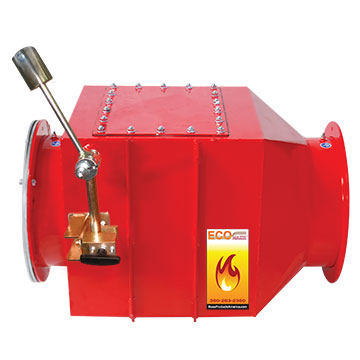

No Return Valve - Model #EM-NRV

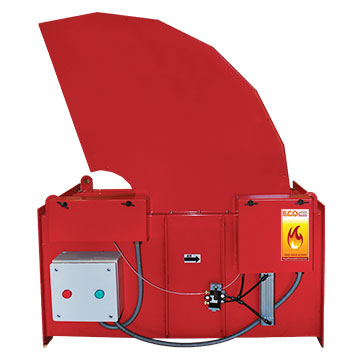

High Speed Abort Gate

EM-HSAG 8”-58”

EcoMAXX™ High Speed Abort Gates are engineered with Triple Security. Activation is achieved by over pressure without electric signal, activation by electronic spark panel and/or activation signaled by a rapid temperature rise in the clean air duct plenum.

A NEW INDUSTRY STANDARD!
DESIGNED SAFETY SMART

EcoMAXX™ High Speed Abort Gates are engineered with TRIPLE SECURITY.

• Activation by over pressure & without electrical signal
• Activation by electronic spark detection signal
• Activation by rapid temperature increase in clean air duct plenum

An EcoMAXX™ High Speed Abort Gate is a NFPA required safety device that is necessary when potentially hazardous filtered air is returned to a building or workspace.

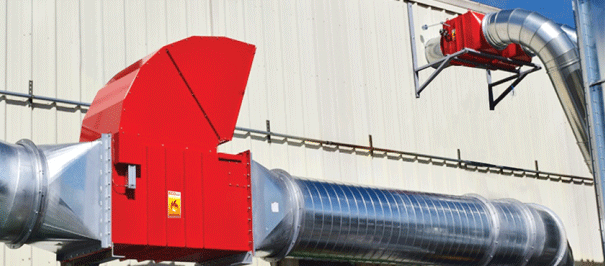

The EcoMAXX™ HSAG is designed for installation in bag house & dust collector return air systems to automatically vent harmful gases to atmosphere, should a fire and/or explosion occur.

EcoMAXX™ High Speed Abort Gates are an integral component for dust collection systems & are recommended for use with EcoBOSS™ Energy Management Systems, EcoMAXX™ Explosion Isolation Valves, EcoMAXX™ Fire Break Shutters & EcoMAXX™

FireBreak Shutters

Model #EM-FBS

EcoMAXX™ FIREBREAK SHUTTERS are engineered for isolation of flammable hazards in vessel and ducted systems!

Available in four different FBS models.

• EM-FBS00G    Gravity closure with manual reset
• EM-FBS00F    Gravity closure with manual reset. Fusible link activation.
• EM-FBS00M    Gravity closure using magnetic release with a pneumatic reset.
• EM-FBS00P & EM-FBS00PH   Pneumatic closure & reset, designed for vertical & horizontal positions

Standard Features

• Thermal heat sensing probe
• Microswitch for system shut down
• Automatic dry chemical suppression systems
• Fire control panel
• 8” to 48” in diameter
• Epoxy powder coated safety red finish
• ATEX certified

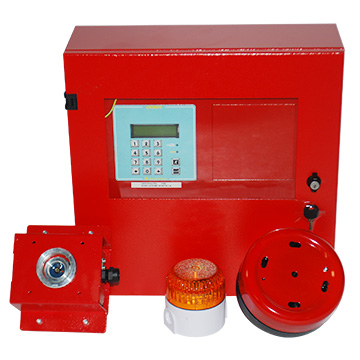

Spark Detection and Extinguishing Systems

EcoMAXX™ Spark Detection & Extinguishing Systems combined with an EcoMAXX™ FireBreak Shutter offer the ultimate protection against dust collector fire and explosion. The standard EcoMAXX™ Fire Control Panel is designed to operate up to (5) five individual duct zones that include the installation of additional detectors and FireBreak Shutter.

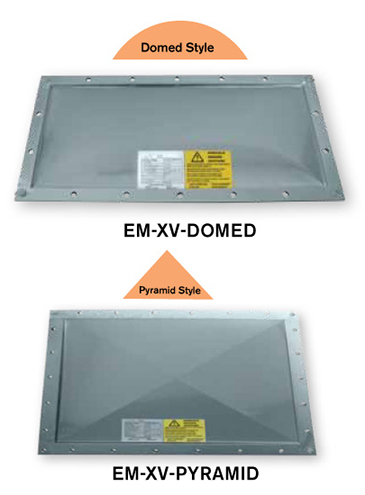

Explosion Vents

Model #EM-XV

SAFETY SMART – EcoMAXX™ EXPLOSION RELIEF PANELS
A Solution to Avoid Personal Injury & Damage to Property

EcoMAXX™ Explosion Relief Vents are ATEX Certified and available in domed & pyramid styles. All panels are laser cut using AISI 316L stainless steel and include a zinc plated external flange with standard AERSTOP NIZ PTE gasket. Alternate PTFE and SILICONCELL gasket are available. An optional internal grill provides support for applications having negative pressures to -24” WG.

Standard EcoMAXX™ Explosion Vents are tested (see price for exceptions) to perform at a breaking pressure of 1.45 PSIG (0.1 bar), Kst Max = 900 bar m/sec, Kg Max = 550 bar m/sec and Pmax = 9 bar, Pred Max = 2.0 bar. Every manufactured lot goes through destructive testing to insure quality and ATEX Performance Specification.

EcoMAXX™ Explosion Relief Vents are a non-reusable safety device that is designed to relieve explosive pressure in a dust collector or vessel without fragmentation. An optional ATEX Certified Signal Sensor is available that will initiate shut down and/or deactivate additional devices, should an event occur.

The size and quantity for selection of explosion relief panels is specifically dependent on the volume of the vessel and the explosive (Kst) value of the material being collected. It is MOST IMPORTANT that choices be made in compliance with the current NFPA 68 Standard on Explosion Protection by Deflagration Venting as well as best industry practice.

EcoMAXX™ Explosion Relief Vents are available for special requirements. Boss Products will provide pricing for non-standard applications along with sizing recommendations.

EcoMAXX™ Control Panels

Intrinsically Safe Control Panels with status lights monitor dust levels and provide system shut-down capability for one or more No Return Explosion Isolation Valves. All models are listed UL intrinsically safe and NFPA 69 compliant.

EcoBOSS™ Power Box Ultimate Control Panels

Power Box Ultimate Control Panels provide the ultimate in energy efficiency and system automation for all dust collection applications. Multiple models and options are available dependent on application requirements and system complexity.

EcoMAXX™ Fire Control Systems

Fire Control Systems provide double security protection for up to 5 duct zones standard. Multiple duct zones installed direct to the dust collector are a key design feature for all EcoBOSS™ Energy Management Systems.

EcoBOSS™ Variable Speed Drives

Variable Speed Drives are available as a stand-alone option or can be installed inside most EcoBOSS™ Control Panels. EB SVD Variable Speed Drives are an essential component for any EcoBOSS™ Energy Management System to
modulate fan speed based on real time demand and system conditions.

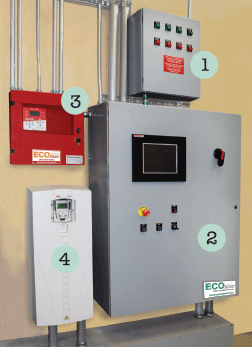

Fire and Explosion Protection Connectivity
with EcoBOSS™ Energy Management Control Systems.

1. Isolation Valve Panel
2. Power Box Ultimate Panel
3. Fire Control Panel
4. Variable Speed Drive
